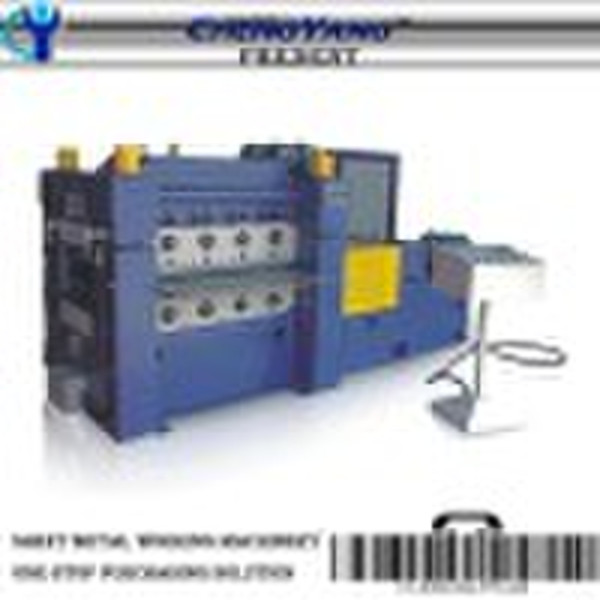

Six-fold Roller-type Leveling Machine
Anson Sun
Contact person
Basic Information
Detailed introduction:1. Brief introduction: The frame structure with high strength and rigidity High surface protection for processed material High leveling precision Three layers upper: support, middle and leveling rollers Data display, PLC, video-data input, edit, modification and store Most advanced leveling machine in this industry 2.Major elements: It is special suitable for the leveling of stainless sheet, 2-metal sheet, metal sheet with printed and plated, nonferrous metal etc. The range of leveling plate thickness: 1.2mm-10mm The range of leveling plate width: 800-2500mm 3. Main Specifications: ModelMax Leveling thickness (mm)Min Level thickness (mm)Max Leveling Width (mm)Yield Strength MpaLeveling roller diameter (mm)Leveling rollers distance (mm)Number of leveling roller(n)Leveling speed (m/min)Motor (km)Dimension (m)W43S-2X80020.680036048502167.53.59X1.58X1.4W43S-2X130020.6130024050551910 60555X1.26X1.8W43S-3X160030.8160024065701510 30453.59X1.58X1.4W43S-3X250030.8250030075801910377.2X3.27X1.74W43S-6X200061.5200036095100138.6456.62X3.53X1.7
Delivery terms and packaging
Packaging Detail: Standard Packing Delivery Detail: Within 60 days upon receipt ofyour remittance
Port: Any Chinese Port
